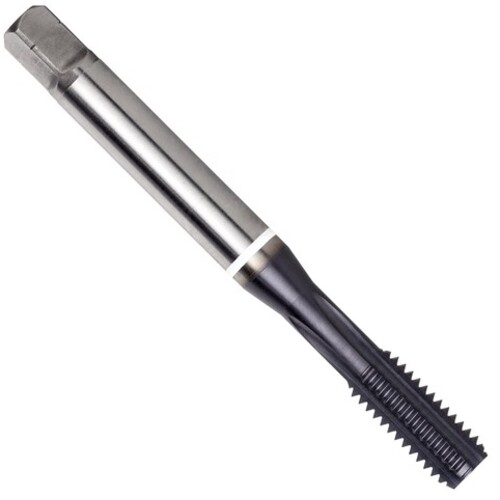

M24x3.0 4Fl Cobalt Straight Flute Bottoming E-code # E631M24
Straight Flute Tap; M24 × 3 mm ; 160 mm OAL ; 4 FL ; HSSE-PM ; TiAlN ; Series E631
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M24 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 3 mm | Coating | TiAlN |
| Thread Standard | M | Tapping Prehole Diameter (Pre-hole) | 21 mm |
| Overall Length (OAL) | 160 mm | Flute Length | 38 mm |
| Thread Cutting Part Length (THL) | 38 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.76″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE-PM | Measurement Type | Metric |
| Special Feature | White Ring | Series/List # | E631 |
| Standard | DIN/ANSI | Thread Size | M24 × 3 |
Product Features
| Family Description | E-code # E631M24 | Country of Origin | India |
Shipping Info
Package Weight
0.676
