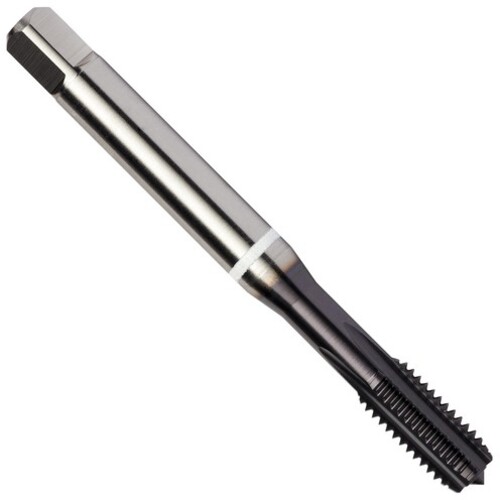

M10x1.5 4Fl Cobalt Straight Flute Semi-Bottoming E-code # E630M10
Straight Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 4 FL ; HSSE-PM ; TiAlN ; Series E630
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M10 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 1.5 mm | Coating | TiAlN |
| Thread Standard | M | Tapping Prehole Diameter (Pre-hole) | 8.5 mm |
| Overall Length (OAL) | 100 mm | Flute Length | 20 mm |
| Thread Cutting Part Length (THL) | 20 mm | Flute Type | Straight |
| Usable Length (LU) | 39 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Cutting Edge Material | HSSE-PM | Series/List # | E630 |
| Special Feature | White Ring | Thread Size | M10 × 1.5 |
Product Features
| Family Description | E-code # E630M10 | Country of Origin | India |
Shipping Info
Package Weight
0.112
