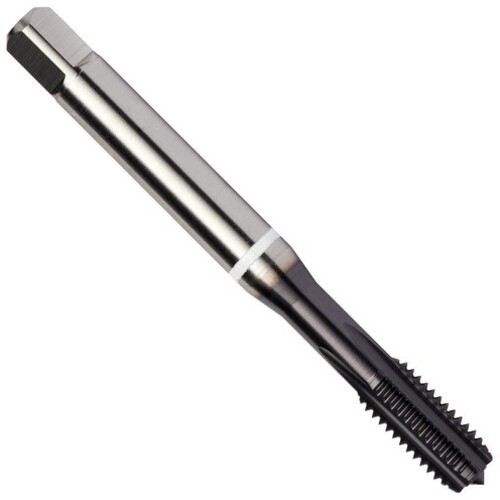

M8x1.25 4Fl Cobalt Straight Flute Semi-Bottoming E-code # E630M8
Straight Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 4 FL ; HSSE-PM ; TiAlN ; Series E630
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M8 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 1.25 mm | Coating | TiAlN |
| Thread Standard | M | Tapping Prehole Diameter (Pre-hole) | 6.8 mm |
| Overall Length (OAL) | 90 mm | Flute Length | 18 mm |
| Thread Cutting Part Length (THL) | 18 mm | Flute Type | Straight |
| Usable Length (LU) | 35 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Cutting Edge Material | HSSE-PM | Series/List # | E630 |
| Special Feature | White Ring | Thread Size | M8 × 1.25 |
Product Features
| Family Description | E-code # E630M8 | Country of Origin | India |
Shipping Info
Package Weight
0.095
