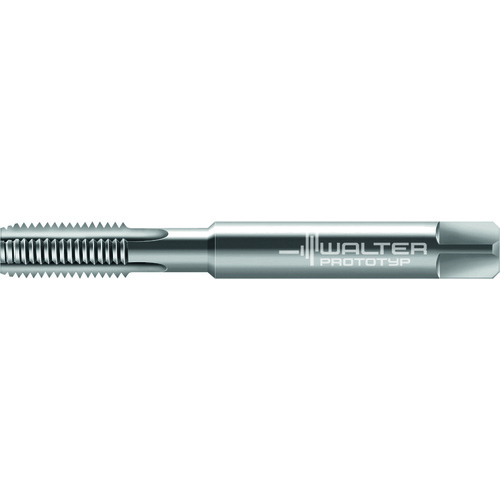

M10x1.5 6HX 2 Flute Carbide Bright Straight Flute
Straight Flute Tap; M10 × 1.5 mm ; 142.78 mm OAL ; 2 FL ; Carbide ; Uncoated ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN371 L |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 142.78 mm | Flute Length | 37 mm |
| Thread Cutting Part Length (THL) | 20 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Thread Size | M10 × 1.5 |
Product Features
| Family Description | 8031310-M10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
