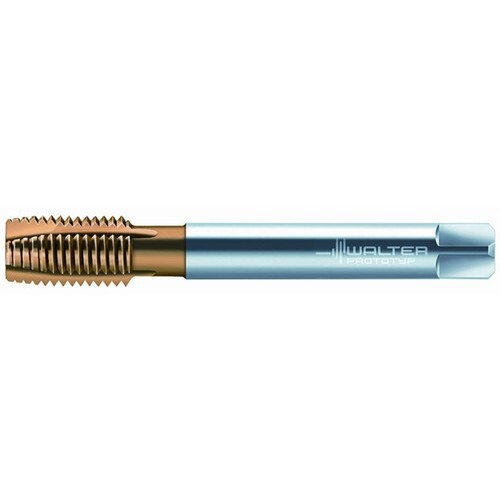

M14x2 6H 3 Flute HSS TiN Straight Flute Tap
Straight Flute Tap; M14 × 2 mm ; 110 mm OAL ; 3 FL ; HSS ; TiN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M14 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 2 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 110 mm | Flute Length | 43 mm |
| Thread Cutting Part Length (THL) | 25 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M14 × 2 |
Product Features
| Family Description | P2036005-M14 | Country of Origin | Germany |
Shipping Info
Package Weight
0.179
