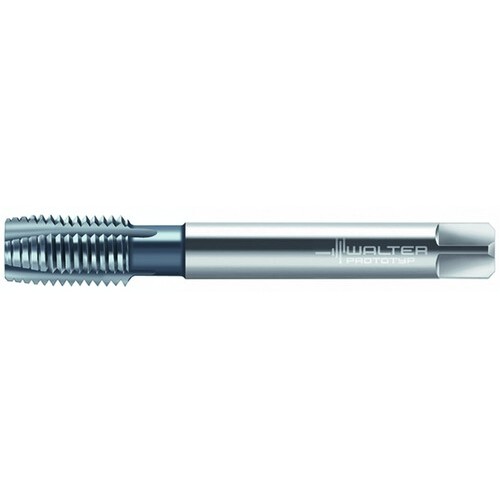

M6x1 6H 3 Flute HSS TiCN Straight Flute Tap
Straight Flute Tap; M6 × 1 mm ; 82.5 mm OAL ; 3 FL ; HSS ; TiCN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 82.5 mm | Flute Length | 27 mm |
| Thread Cutting Part Length (THL) | 15 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M6 × 1 |
Product Features
| Family Description | P2036006-M6 | Country of Origin | Germany |
Shipping Info
Package Weight
0.028
