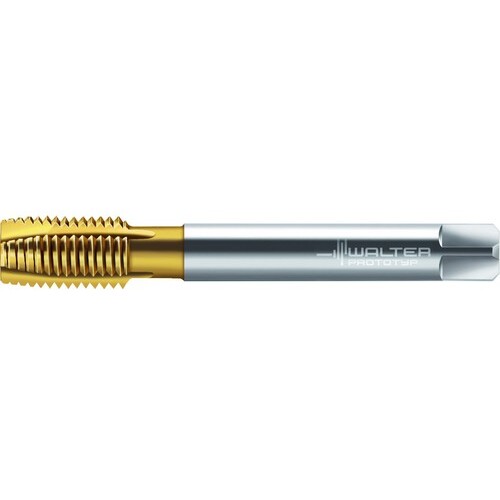

G1/4-19 3 Flute HSS TiN Straight Flute Tap
Straight Flute Tap; 1/4″ - 19 ; 4″ OAL ; 3 FL ; HSS ; TiN
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/4″ | Standard | DIN 5156 |
| Threads per Inch (TPI) | 19 | Coating | TiN |
| Thread Standard | BSP | Flute Length | 1-37/64″ |
| Overall Length (OAL) | 4″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 53/64″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | CW|45 Degrees | Thread Size | 1/4″ - 19 |
| Cutting Edge Material | HSS |
Product Features
| Family Description | P2436005-G1/4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.161
