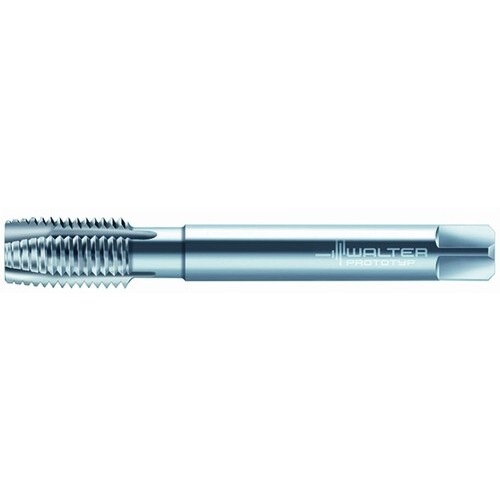

3/4-16 UNF 2B 4 Flute HSS Bright Straight Flute Ta
Straight Flute Tap; 3/4″ - 16 ; 4-21/64″ OAL ; 4 FL ; HSS ; Uncoated ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 16 | Standard | DIN 2184-1 |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 4-21/64″ | Flute Length | 1-31/32″ |
| Thread Cutting Part Length (THL) | 15/16″ | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS | Thread Size | 3/4″ - 16 |
Product Features
| Family Description | P23360-UNF3/4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.307
