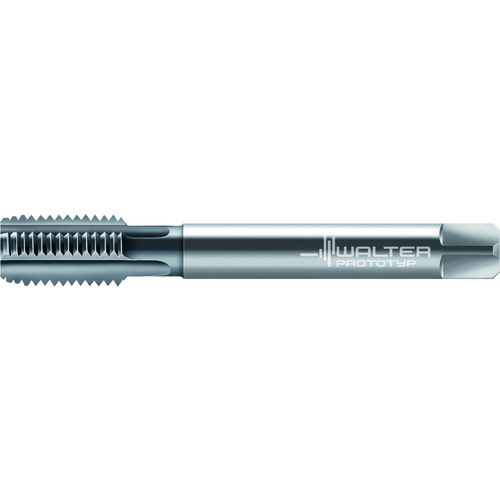

M16x2 6HX 4 Flute HSS NIT Straight Flute Tap
Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; 4 FL ; HSS ; Nitride ; 6HX
| Thread Diameter Size (TDZ) | M16 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 110 mm | Flute Length | 48 mm |
| Thread Cutting Part Length (THL) | 25 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|35 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M16 × 2 |
Product Features
| Family Description | 20362-M16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.208
