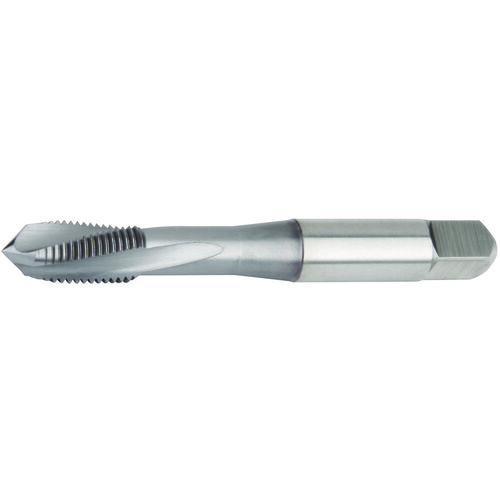

GT905142 M10X1.25 D5 3FL LH SF PLUG
Spiral Flute Tap; M10 × 1.25 mm ; 74.6 mm OAL ; 3 FL ; HSSCo ; D5
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M10 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 1.25 mm | Thread Tolerance Class (TCTR) | D5 |
| Threads per Inch (TPI) | 20 | Standard | ANSI |
| Thread Standard | Metric | Tool Type | High Performance Tap|Hand Tap |
| Overall Length (OAL) | 74.6 mm | Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 13.4 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.68 mm | Style | Plug |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees|CCW | Coolant Supply Property (CSP) | External |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0686
