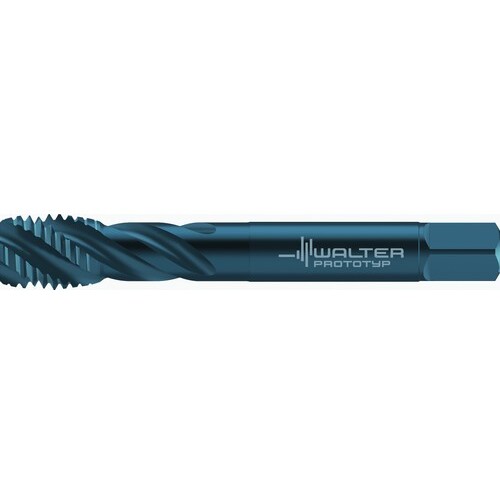

7/16″-20 UNF 2B/3B 3 Flute HSS-E Steam Oxide Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; 7/16″ - 20 ; 100 mm OAL ; 3 FL ; HSSE ; Black Oxide ; 2B | 3B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | 2B | 3B |
| Threads per Inch (TPI) | 20 | Chamfer | Modified Bottom |
| Thread Standard | UNF | Coating | Black Oxide |
| Overall Length (OAL) | 100 mm | Flute Length | 34 mm |
| Usable Length (LU) | 73 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Grade | WY80FC |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
