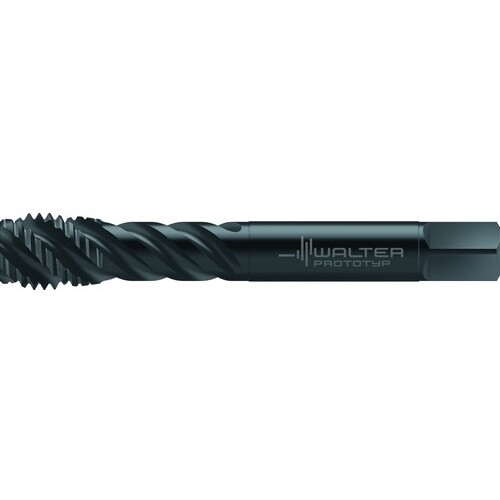

5/8″-11 UNC 2BX 4 Flute HSS-E Steam Oxide Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; 5/8″ - 11 ; 110 mm OAL ; 4 FL ; HSSE ; Black Oxide ; 2BX

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 5/8″ | Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 11 | Chamfer | Modified Bottom |
| Thread Standard | UNC | Coating | Black Oxide |
| Overall Length (OAL) | 110 mm | Flute Length | 53 mm |
| Usable Length (LU) | 66 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 50 Degrees | Grade | WY80FC |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
