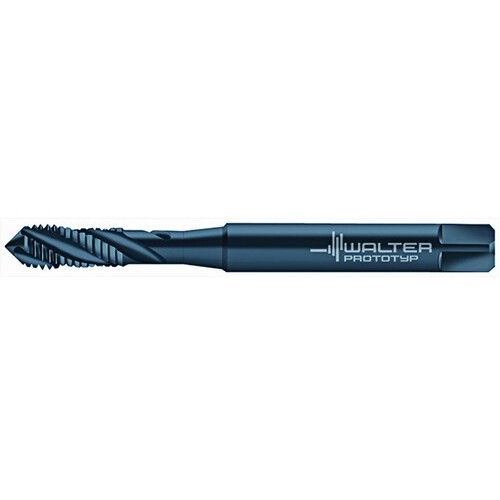

#8-36 UNF 2B 3 Flute HSS VAP Spiral Flute Tap
Spiral Flute Tap; #8 - 36 ; 2-35/64″ OAL ; 3 FL ; HSS ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | #8 | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 36 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | NF | Standard | DIN 2184-1 |
| Overall Length (OAL) | 2-35/64″ | Flute Length | 45/64″ |
| Thread Cutting Part Length (THL) | 9/32″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Wire Gauge |
Product Features
| Family Description | M23513-UNF8 | Country of Origin | Germany |
Shipping Info
Package Weight
0.018
