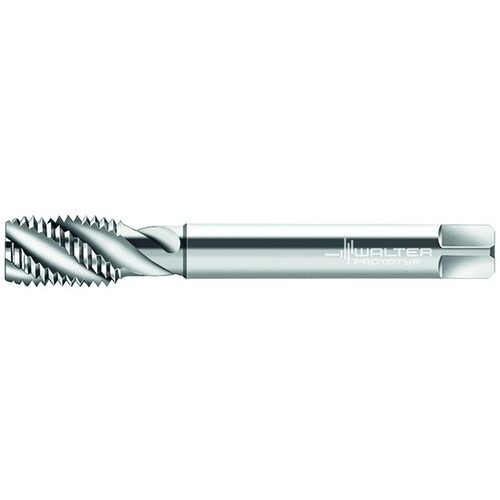

7/8-14 UNF 2B 4 Flute HSS Bright Spiral Flute Tap
Spiral Flute Tap; 7/8″ - 14 ; 4-59/64″ OAL ; 4 FL ; HSS ; Uncoated ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 14 | Standard | DIN 2184-1 |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 4-59/64″ | Flute Length | 2-23/64″ |
| Thread Cutting Part Length (THL) | 45/64″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS |
Product Features
| Family Description | P23569-UNF7/8 | Country of Origin | Germany |
Shipping Info
Package Weight
0.483
