GT825049 M12X1.75 D6 3FL RHSF SBOTD

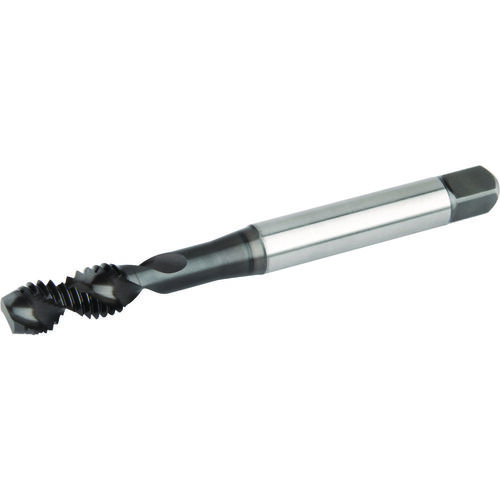

Spiral Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; 3 FL ; HSSCo ; D6
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M12 | Cutting Edge Material | HSSCo |
| Thread Pitch (TP) | 1.75 mm | Thread Tolerance Class (TCTR) | | 6H | D6 | |
| Threads per Inch (TPI) | 15 | Standard | DIN | ANSI |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 110 mm | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 21 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.1116
