GT725039 M4X0.7 D4 2FL LH SF PLUGDI

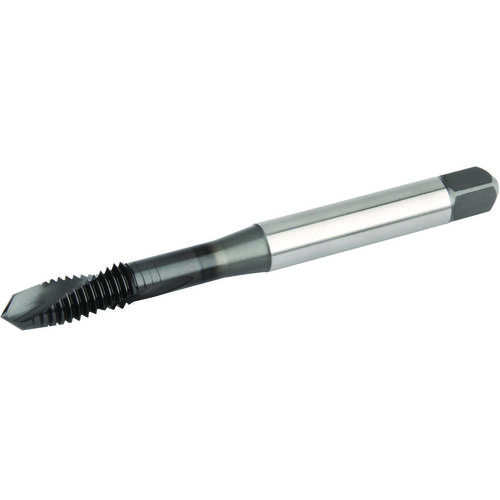

Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; 2 FL ; HSSCo ; D4
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M4 | Cutting Edge Material | HSSCo |
| Thread Pitch (TP) | 0.7 mm | Thread Tolerance Class (TCTR) | | 6H | D4 | |
| Threads per Inch (TPI) | 36 | Standard | DIN | ANSI |
| Thread Standard | Metric | Tool Type | High Performance Tap|Hand Tap |
| Overall Length (OAL) | 63 mm | Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 11 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 4.27 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0124
