VTSFT-TC5029 10-24 H5 3FL RHSF SBOT

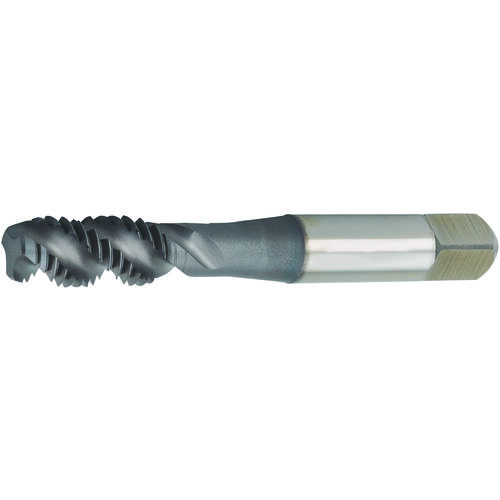

Spiral Flute Tap; #10 - 24 ; 2.38″ OAL ; 3 FL ; HSSCo ; Oxide ; H5
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | #10 | Thread Tolerance Class (TCTR) | | 2B | H5 | |
| Threads per Inch (TPI) | 24 | Standard | ANSI |
| Thread Standard | UNC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2.38″ | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 1/2″ | Coating | Oxide |
| Usable Length (LU) | 0.92″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Machine Screw |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.014
