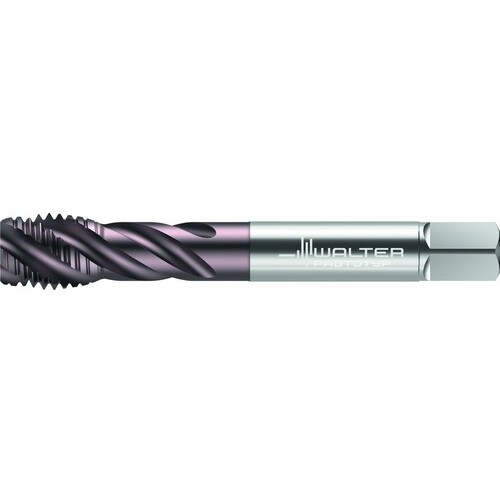

7/8″-14 UNF 2B/3B 4 Flute HSS-E TiAlN Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; 7/8″ - 14 ; 125 mm OAL ; 4 FL ; HSSE ; TiAlN ; 2B | 3B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/8″ | Thread Tolerance Class (TCTR) | 2B | 3B |
| Threads per Inch (TPI) | 14 | Chamfer | Modified Bottom |
| Thread Standard | UNF | Coating | TiAlN |
| Overall Length (OAL) | 125 mm | Flute Length | 54 mm |
| Usable Length (LU) | 76 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Grade | WY80RG |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
