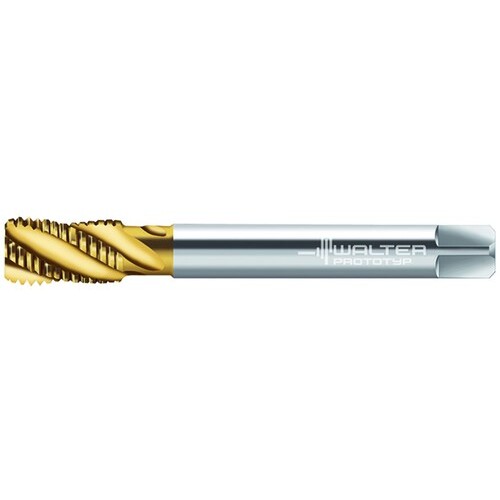

3/4″-10 UNC 2B 4 Flute HSS-E TIN Modified Bottoming Spiral Flute Tap
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 10 | Chamfer | Modified Bottom |
| Thread Standard | UNC | Coating | TiN |
| Overall Length (OAL) | 125 mm | Flute Length | 55 mm |
| Usable Length (LU) | 81 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Grade | WY80AA |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.042
