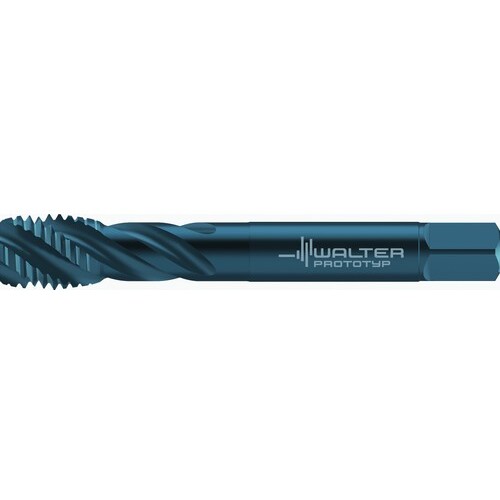

M20x2.5 Metric 6HX 4 Flute HSS-E Steam Oxide Modified Bottoming Spiral Flute Tap
Spiral Flute Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSSE ; Black Oxide ; 6HX
| Thread Diameter Size (TDZ) | M20 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2.5 mm | Chamfer | Modified Bottom |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 140 mm | Flute Length | 61 mm |
| Usable Length (LU) | 93 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.652″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 40 Degrees | Grade | WY80FC |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
