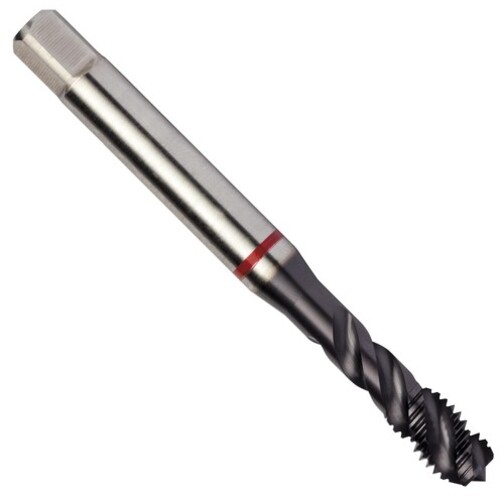

1/2-13 HSS-E PM 3 Flute 2B 45 Degree Red Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E8101/2
Spiral Flute Tap; 1/2″ - 13 ; 4.331″ OAL ; 3 FL ; HSSE-PM ; TiAlN ; 2B ; Series E810
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/2″ | Standard | DIN ANSI |
| Threads per Inch (TPI) | 13 | Tool Type | Machine Tap |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 0.709″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2.5xD |
| Cutting Edge Material | HSSE-PM | Square Size | 0.273″ |
| Thread Tolerance Class (TCTR) | 2B | Measurement Type | Inch |
| Special Feature | Red Shark | Series/List # | E810 |
Product Features
| Family Description | E-code # E8101/2 | Country of Origin | India |
Shipping Info
Package Length
4.50000
Package Width
.69000
Package Height
.69000
Package Weight
0.118
