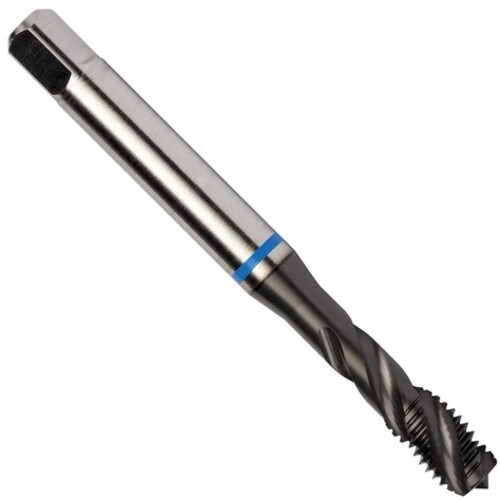

1-12 HSS-E PM 4 Flute H6 40 Degree Blue Shark Machine Tap Spiral Flute-Super-B E-code # E9121H6
Spiral Flute Tap; 1″ - 12 ; 5.512″ OAL ; 4 FL ; HSSE-PM ; H6 ; Series E912
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1″ | Standard | DIN ANSI |
| Threads per Inch (TPI) | 12 | Tool Type | Machine Tap |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 5.512″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1.063″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | Length Group | 2.5xD |
| Applicable Material | | Stainless Steel | | Square Size | 0.597″ |
| Cutting Edge Material | HSSE-PM | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H6 | Series/List # | E912 |
| Special Feature | Blue Shark |
Product Features
| Family Description | E-code # E9121H6 | Country of Origin | India |
Shipping Info
Package Length
5.75000
Package Width
1.25000
Package Height
1.25000
Package Weight
0.69
