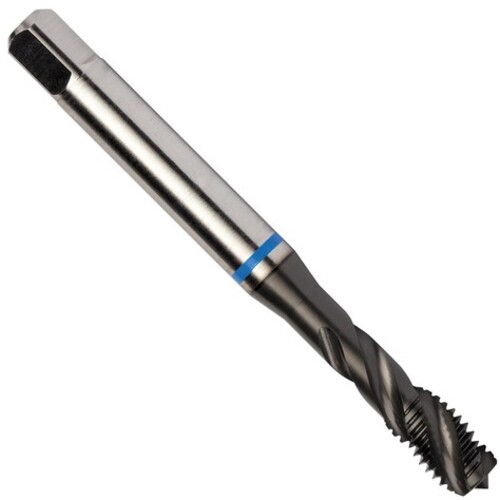

7/8-9 HSS-E PM 4 Flute H6 40 Degree Blue Shark Machine Tap Spiral Flute-Super-B E-code # E8127/8H6
Spiral Flute Tap; 7/8″ - 9 ; 5.512″ OAL ; 4 FL ; HSSE-PM ; H6 ; Series E812
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/8″ | Standard | DIN ANSI |
| Threads per Inch (TPI) | 9 | Tool Type | Machine Tap |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 5.512″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.984″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | Length Group | 2.5xD |
| Applicable Material | | Stainless Steel | | Square Size | 0.52″ |
| Cutting Edge Material | HSSE-PM | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H6 | Series/List # | E812 |
| Special Feature | Blue Shark |
Product Features
| Family Description | E-code # E8127/8H6 | Country of Origin | India |
Shipping Info
Package Length
5.40000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.506
