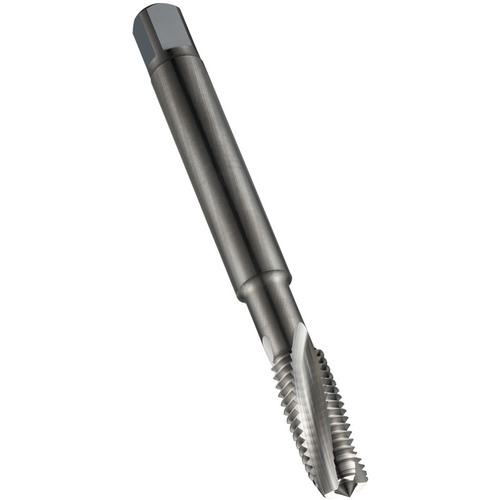

M3x0.50 Carbide 3 Flute 6H 15 Degree Machine Tap Spiral Flute-Bright E-code # T205M3
Spiral Flute Tap; M3 × 0.5 mm ; 3 FL ; Carbide ; Uncoated ; 6H ; Series T205
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M3 | Chamfer | 2P-3P |
| Thread Pitch (TP) | 0.5 mm | Coating | Uncoated |
| Thread Standard | M | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | 6H | Measurement Type | Metric |
| Standard | DIN 371 | Series/List # | T205 |
| Tool Type | Machine Tap |
Product Features
| Family Description | E-code # T205M3 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
