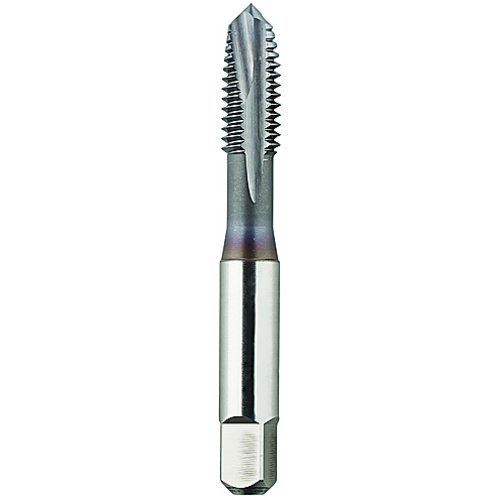

M8 3-Flute, D5 Series/List # 2097MC Spiral Flute Tap

‎Spiral Point Tap; M8 × 1 mm ; 2-23/32″ OAL ; 3 FL ; HSS-PM ; TiCN ; D5 ; Series 2097MC

Item # 1029418

Brand: Morse Cutting Tools

MFG #: 61064

Legacy Part #: MT3361064

UPC #: 01029418 | 68612561064 | 686125610647

Trade Name: SINGLE TAP

Quantity Available

Thread Standard

Cutting Edge Material

HSS-PM

Thread Size

M8 × 1

Applicable Material

Thread Diameter Size (TDZ)

Connection Diameter Machine Side (DCONMS)

0.318″

Thread Pitch (TP)

1 mm

Thread Cutting Part Length (THL)

11/16″

Thread Tolerance Class (TCTR)

Drive Size (DRVS)

0.238″

Usable Length (LU)

‎1-1/8″

Flute Type

Straight

Overall Length (OAL)

‎2-23/32″

Cutting Direction (HAND)

Right Hand

Chamfer

Plug

Coolant Supply Property (CSP)

External

Coating

TiCN

Measurement Type

Metric

Flute Count (NOF)

Series/List #

2097MC

Product Features

Remarks

‎? HPT?- High Performance Tap - Harder Alloys? Recommended for 32Rc-45Rc materials including steel alloys, titanium alloys, nickel base high temp alloys, tool and mold steels and stainless steels.? Spiral?Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.? Plug?Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.? CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.? P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:? Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

4.00000

Package Width

.37500

Package Height

.37500

Package Weight

0.06
