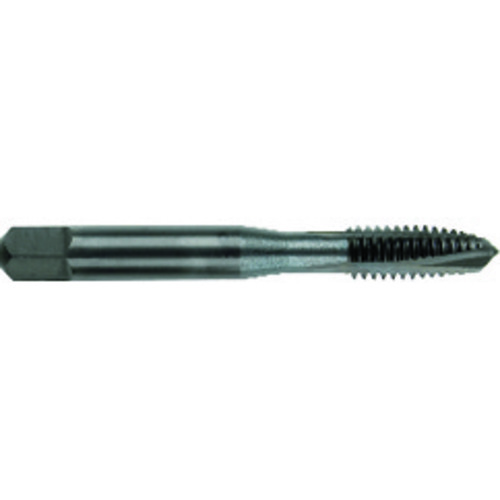

M3 3-Flute, D3 Series/List # 2097MC Spiral Flute Tap
Spiral Point Tap; M3 × 0.5 mm ; 1-15/16″ OAL ; 3 FL ; HSS-PM ; TiCN ; D3 ; Series 2097MC
| Thread Standard | NC | Flute Count (NOF) | 3 |
| Thread Size | M3 × 0.5 | Cutting Edge Material | HSS-PM |
| Thread Diameter Size (TDZ) | M3 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Pitch (TP) | 0.5 mm | Thread Cutting Part Length (THL) | 5/16″ |
| Thread Tolerance Class (TCTR) | D3 | Flute Type | Straight |
| Usable Length (LU) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1-15/16″ | Coolant Supply Property (CSP) | External |
| Chamfer | Plug | Measurement Type | Metric |
| Coating | TiCN | Series/List # | 2097MC |
Product Features
| Remarks | •High Performance Tap - Exotic Alloys •Recommended for 32Rc-45Rc materials including steel alloys, titanium alloys, nickel base high temp alloys, tool and mold steels and stainless steels. •SpiralPoint Taps •are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. •PlugStyle •(3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance. •CNC Reduced Neck Design •enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. •P/M Powder Metallurgy High Speed Steel •Premium Steel Engineered For: Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.02
