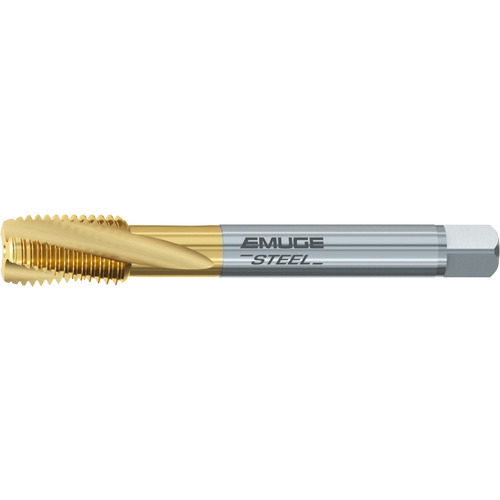

Spiral Flute Tap; 1″ -8 × 6.299″ OAL ; HSSE ; TiN ; UNC ; 2B ; Series U451400
Spiral Flute Tap; 1″ - 8 ; 6.299″ OAL ; HSSE ; TiN ; 2B ; Series CU451400
| Thread Diameter Size (TDZ) | 1″ | Tool Type | Rekord D |
| Threads per Inch (TPI) | 8 | Chamfer | 2P-3P |
| Thread Standard | UNC | Coating | TiN |
| Overall Length (OAL) | 6.299″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | CU451400 |
| Thread Tolerance Class (TCTR) | 2B | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.81
