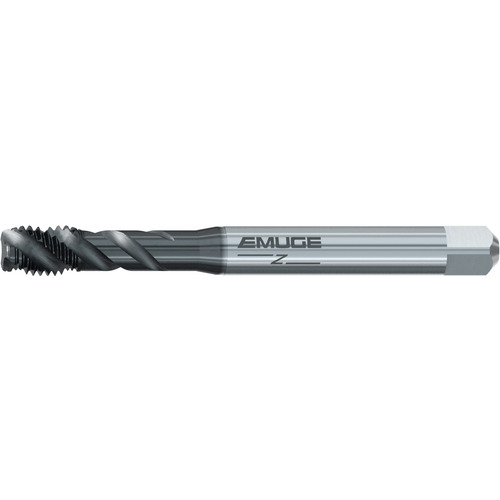

Spiral Flute Tap; #10 -24 × 2.756″ OAL ; HSSE ; GLT-1 ; UNC ; 3B
Spiral Flute Tap; #10 - 24 ; 2.756″ OAL ; HSSCo ; TiAlN ; 3B ; Series BU51C410
| Thread Diameter Size (TDZ) | #10 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 24 | Tool Type | Enorm Z/E |
| Thread Standard | UNC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2.756″ | Coating | TiAlN |
| Usable Length (LU) | 0.57″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | BU51C410 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 3B |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.017
