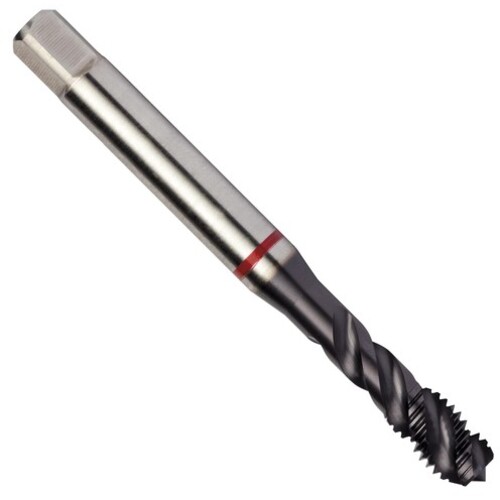

M14x2.0 HSS-E PM 3 Flute 6H 45 Degree Red Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E626M14
Spiral Flute Tap; M14 × 2 mm ; 110 mm OAL ; 3 FL ; HSSE-PM ; TiAlN ; 6H ; Series E626
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M14 | Standard | DIN ANSI |
| Thread Pitch (TP) | 2 mm | Tool Type | Machine Tap |
| Thread Standard | M | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | TiAlN |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Style | Semi-Bottoming |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Length Group | 2.5xD |
| Thread Tolerance Class (TCTR) | 6H | Measurement Type | Metric |
| Special Feature | Red Shark | Series/List # | E626 |
Product Features
| Family Description | E-code # E626M14 | Country of Origin | India |
Shipping Info
Package Weight
0.152
