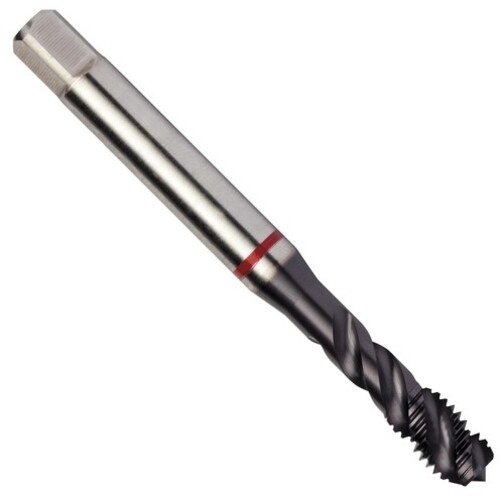

M8x1.25 HSS-E PM 3 Flute 6H 45 Degree Red Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E626M8
Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSE-PM ; TiAlN ; 6H ; Series E626
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M8 | Special Feature | Red Shark |
| Thread Pitch (TP) | 1.25 mm | Standard | DIN ANSI |
| Thread Standard | M | Tool Type | Machine Tap |
| Overall Length (OAL) | 90 mm | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 35 mm | Coating | TiAlN |
| Usable Length (LU) | 35 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2.5xD |
| Cutting Edge Material | HSSE-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | E626 |
Product Features
| Family Description | E-code # E626M8 | Country of Origin | India |
Shipping Info
Package Weight
0.071
