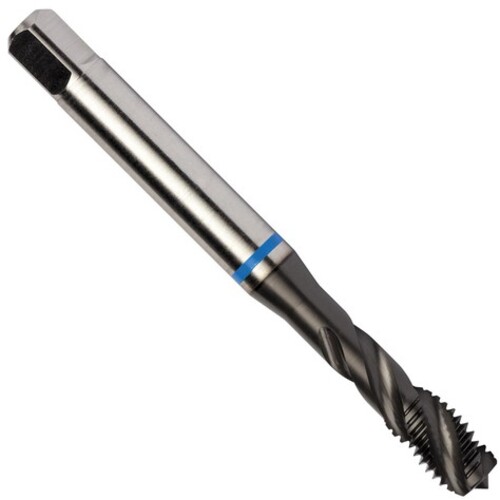

M18x1.5 HSS-E PM 4 Flute 6H 40 Degree Blue Shark Machine Tap Spiral Flute-Super-B E-code # E768M18X1.5
Spiral Flute Tap; M18 × 1.5 mm ; 110 mm OAL ; 4 FL ; HSSE-PM ; 6H ; Series E768
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M18 | Standard | DIN ANSI |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Machine Tap |
| Thread Standard | MF | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.542″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Stainless Steel | | Length Group | 2.5xD |
| Cutting Edge Material | HSSE-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | E768 |
| Special Feature | Blue Shark |
Product Features
| Family Description | E-code # E768M18X1.5 | Country of Origin | India |
Shipping Info
Package Weight
0.262
