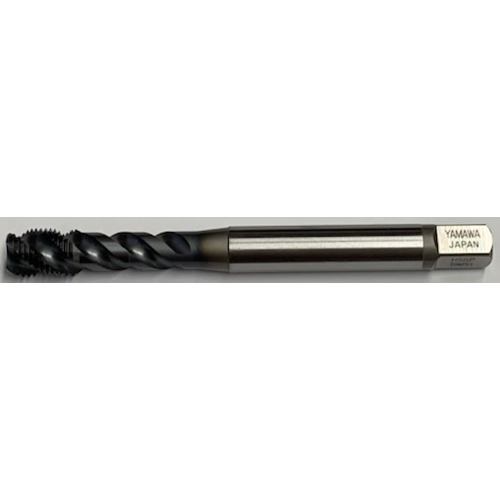

394619-VUSP D5 M 5 × 0.8
Additional Tariff Surcharge of 15 %
| Thread Diameter Size (TDZ) | M5 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 0.8 mm | Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric | Chamfer | 2.5P |
| Overall Length (OAL) | 2.756″ | Coating | TiCN |
| Usable Length (LU) | 0.984″ | End Shape | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Other Non-Metallic Materials | | Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
