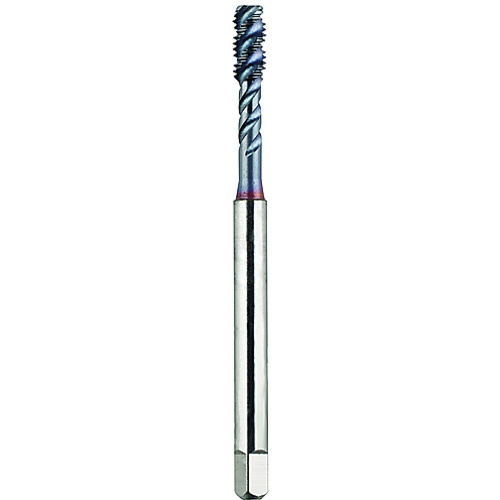

‎M4 × 0.70 Dia. - D4 - 3 FL - Premium HSS - TiCN Semi Bottoming Spiral FL Tap Series/List #2089MC

Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; 3 FL ; HSS-PM ; TiCN ; D4 ; Series 2089MC

Item # 1032000

Brand: Morse Cutting Tools

MFG #: 61276

Legacy Part #: MT4261276

UPC #: 01032000 | 68612561276 | 686125612764

Trade Name: SINGLE TAP

Quantity Available

Thread Diameter Size (TDZ)

Thread Tolerance Class (TCTR)

Thread Pitch (TP)

0.7 mm

Standard

DIN | ANSI

Thread Standard

Tool Type

High Performance Tap

Overall Length (OAL)

63 mm

Chamfer

Semi-Bottoming

Thread Cutting Part Length (THL)

6 mm

Coating

TiCN

Usable Length (LU)

21 mm

Cutting Direction (HAND)

Right Hand

Connection Diameter Machine Side (DCONMS)

0.168″

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Metric

Flute Helix Angle (FHA)

48 Degrees

Series/List #

2089

Applicable Material

| Steel | Stainless Steel | Super-Alloys / Titanium |

Drive Size (DRVS)

0.131″

Cutting Edge Material

HSS-PM

Thread Size

M4 × 0.7 mm

Product Features

Remarks

‎• HPT†- High Performance Tap†- DIN Length• Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness.• Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole.• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For: Hardness / Wear Resistance / Tool Life / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.25000

Package Height

.25000

Package Weight

0.03
