6958839 TC115-M14X1.5-L0 WY80

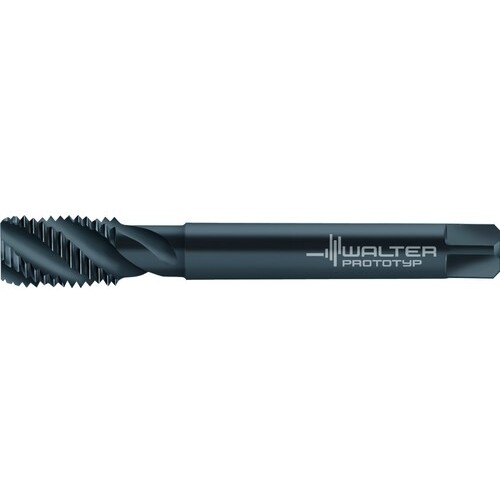

Spiral Flute Tap; M14 × 1.5 mm ; 100 mm OAL ; 4 FL ; HSSE ; Black Oxide ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M14 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm | Chamfer | Modified Bottom |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 100 mm | Flute Length | 42 mm |
| Usable Length (LU) | 71 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Grade | WY80FC |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSE |
Product Features
| Country of Origin | Germany |
