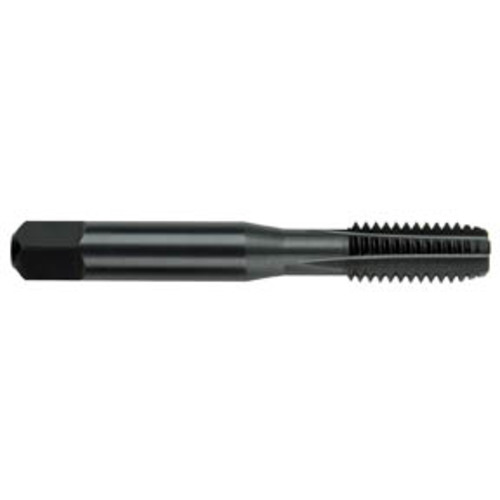

M6 4-Flute, D5 Series/List # 2094M Spiral Flute Tap
Straight Flute Tap; M6 × 1 mm ; 2-1/2″ OAL ; 4 FL ; HSS-PM ; Black Oxide ; D5 ; Series 2094M
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 2-1/2″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 5/8″ | Flute Type | Straight |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 2094M |
Product Features
| Remarks | •High Performance Tap - Cast Iron •Recommended for all types of gray, ductile and malleable cast iron. •Straight Flute •Steam Oxide Over Nitride Finish •features a hard abrasion resistant •Nitrided Base •for enchanced tool life in abrasive materials including cast iron. •Steam Oxide •surface treatment helps toughen the nitride base, reduces friction, loading and galling, helps retain cutting fluids, improves thread qualtiy and extends tool life. •Semi-Bottoming Style •(2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth. •CNC Reduced Neck Design •enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. •P/M Powder Metallurgy High Speed Steel •Premium Steel Engineered For: Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.05
