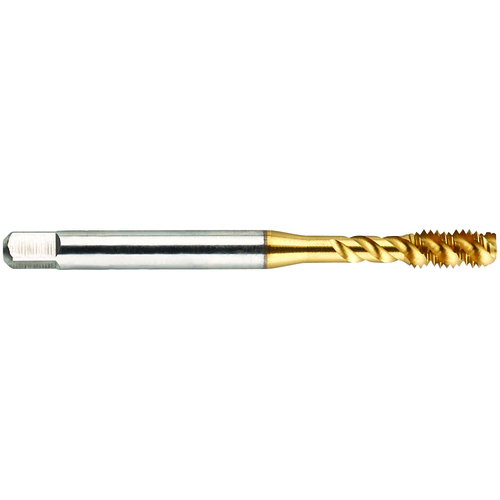

2091G SHEARTAP 8-32 H3
Spiral Flute Tap; #8 - 32 ; 2-1/8″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series 2091
| Thread Diameter Size (TDZ) | #8 | Flute Helix Angle (FHA) | 48 Degrees |
| Threads per Inch (TPI) | 32 | Cutting Edge Material | HSS |
| Thread Standard | NC | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 2-1/8″ | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.236″ | Coating | TiN |
| Usable Length (LU) | 3/4″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Measurement Type | Machine Screw |
| Flute Count (NOF) | 3 | Series/List # | 2091 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.01
