GT005015 M12X1.25 6HX SPPT PLG 374

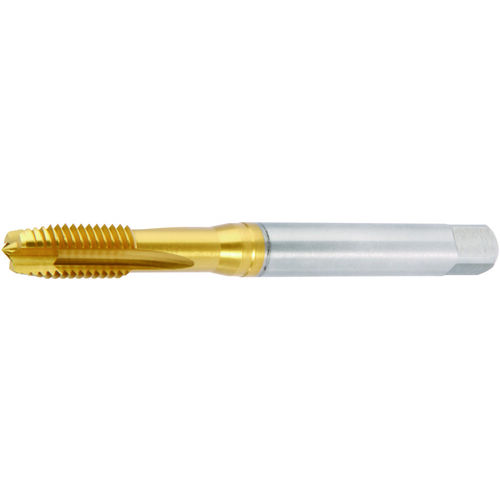

Spiral Flute Tap; M12 × 1.25 mm ; 100 mm OAL ; 3 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M12 | Standard | DIN374 |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 3P-5P |
| Thread Standard | Metric | Flute Type | Spiral |
| Overall Length (OAL) | 100 mm | End Shape | Spiral Point |
| Thread Cutting Part Length (THL) | 22 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Square Size | 7 mm |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.1102
