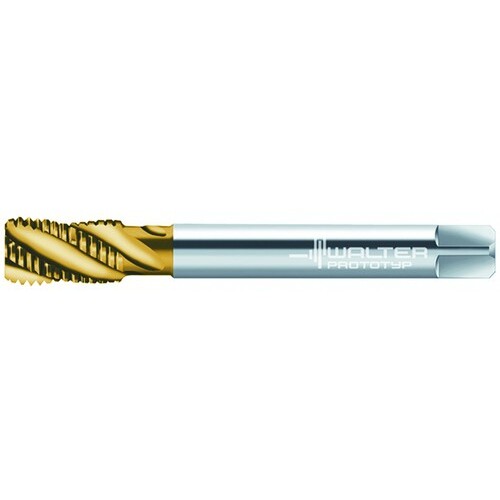

5/16-18 UNC 2B 3 Flute HSS TiN Spiral Flute Tap
Spiral Flute Tap; 5/16″ - 18 ; 3-39/64″ OAL ; 3 FL ; HSS ; TiN ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 18 | Standard | DIN 2184-1 |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 3-39/64″ | Flute Length | 1-11/64 |
| Thread Cutting Part Length (THL) | 15/32″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSS |
Product Features
| Family Description | M2256305-UNC5/16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.053
