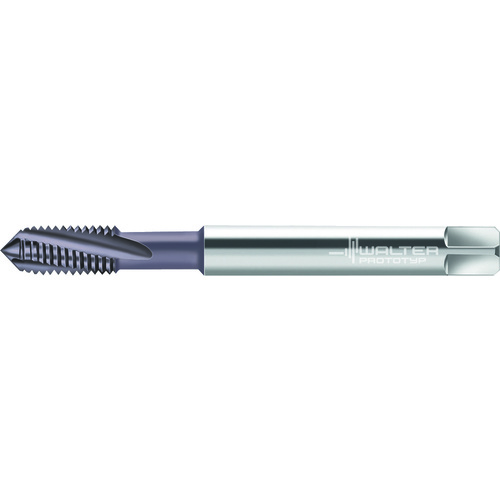

M5x0.8 6HX 3 Flute HSS ACN Spiral Flute Tap
Spiral Flute Tap; M5 × 0.8 mm ; 72.1 mm OAL ; 3 FL ; HSS ; TiAlN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.8 mm | Standard | DIN 371 |
| Thread Standard | Metric | Coating | TiAlN |
| Overall Length (OAL) | 72.1 mm | Flute Length | 24 mm |
| Thread Cutting Part Length (THL) | 16 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS |
Product Features
| Family Description | 2041663-M5 | Country of Origin | India |
Shipping Info
Package Weight
0.032
