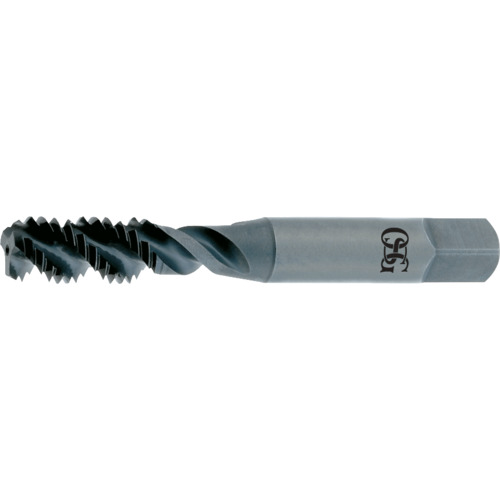

M4 0.70 Dia-6H-3 FL-HSS-Bright-Bottoming Spiral Flute Tap
Spiral Flute Tap; M4 × 0.7 mm ; 2-1/8″ OAL ; 3 FL ; HSS ; Uncoated ; 6H ; Series 298
| Thread Diameter Size (TDZ) | M4 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 0.7 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 2-1/8″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 3/4″ | End Shape | Chamfer |
| Usable Length (LU) | 3/4″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 298 |
| Thread Tolerance Class (TCTR) | 6H |
Product Features
| Remarks | •Seven Taps •Spiral Fluted Bottoming Taps •Bright Finish •Designed for tapping aluminum, mild steels and medium carbon steels •Short thread geometry •Highest speed tapping without chip packing | Country of Origin | Brazil |
Shipping Info
Package Length
2.90000
Package Width
.40000
Package Height
.35000
Package Weight
0.014
