1/4-20 2B 3FL HS HY-PRO

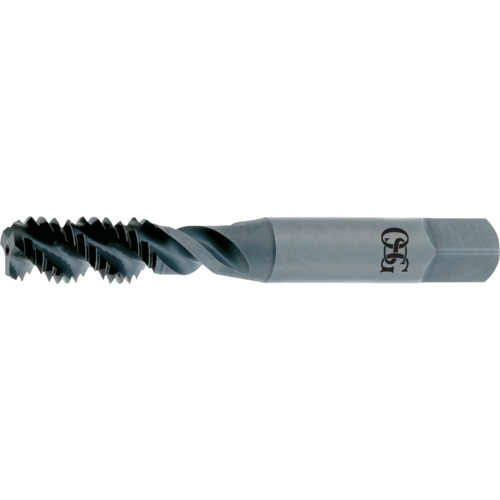

Spiral Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSS ; Uncoated ; 2B ; Series 298

| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 20 | Chamfer | 1.5P-2P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1″ | End Shape | Chamfer |
| Usable Length (LU) | 1″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 298 |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | •Seven Taps
•Spiral Fluted Bottoming Taps
•Bright Finish
•Designed for tapping aluminum, mild steels and medium carbon steels
•Short thread geometry
•Highest speed tapping without chip packing | Country of Origin | Brazil |
Shipping Info
Package Length
2.60000
Package Width
.20000
Package Height
.30000
Package Weight
0.03
