6-32 2B 2FL HS HY-PRO 7

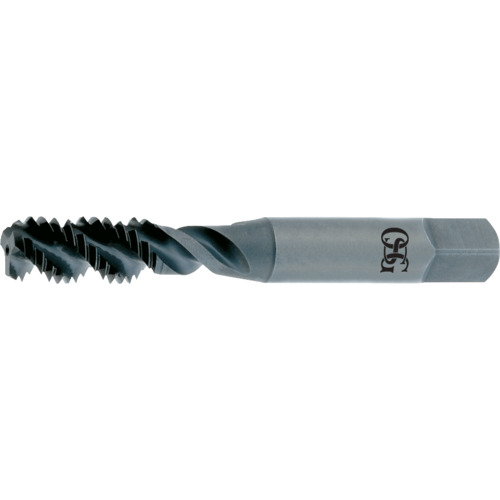

Spiral Flute Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSS ; Uncoated ; 2B ; Series 298
| Thread Diameter Size (TDZ) | #6 | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 32 | Chamfer | 1.5P-2P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 11/16″ | End Shape | Chamfer |
| Usable Length (LU) | 11/16″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 298 |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | •Seven Taps •Spiral Fluted Bottoming Taps •Bright Finish •Designed for tapping aluminum, mild steels and medium carbon steels •Short thread geometry •Highest speed tapping without chip packing | Country of Origin | Brazil |
