7/8-9 2B 4FL S/O

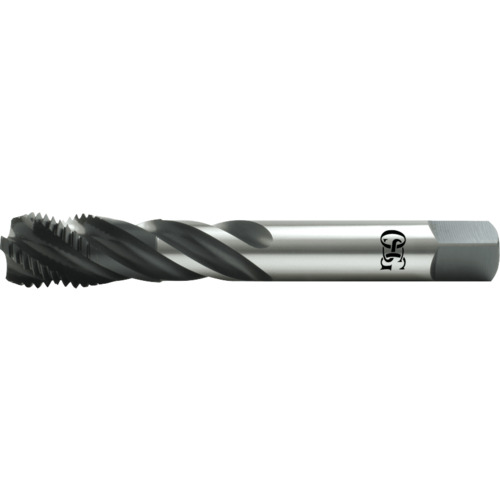

Spiral Flute Tap; 7/8″ - 9 ; 140 mm OAL ; 4 FL ; HSSCo ; Black Oxide ; 2B ; Series 13015
| Thread Diameter Size (TDZ) | 7/8″ | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 9 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 140 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 2-7/32″ | End Shape | Chamfer |
| Usable Length (LU) | 0.889″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSCo | Series/List # | 13015 |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | •Premium Vanadium High Speed Steel •For Verical Application •DIN Overall Length •Steam Oxide Coating •Modified Bottom Chamfer •Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
Shipping Info
Package Length
5.62500
Package Width
1.00000
Package Height
1.00000
Package Weight
0.506
