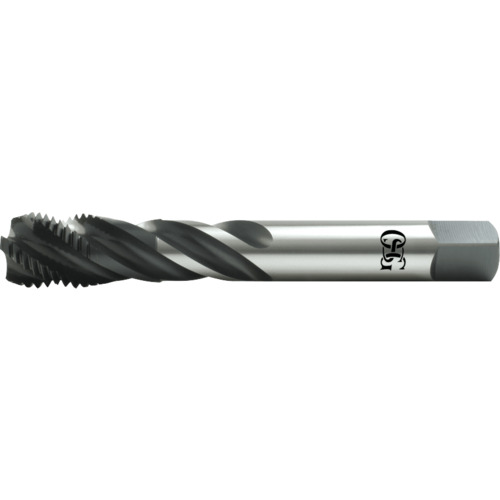

5/8-11-2B-4FL-HSSE-Steam Oxide-Modified Bottoming-Spiral Flute Tap
Spiral Flute Tap; 5/8″ - 11 ; 110 mm OAL ; 4 FL ; HSSCo ; Black Oxide ; 2B ; Series 13015

| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 11 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-13/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.728″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSCo | Series/List # | 13015 |
| Thread Tolerance Class (TCTR) | 2B |
Product Features
| Remarks | •Premium Vanadium High Speed Steel
•For Verical Application
•DIN Overall Length
•Steam Oxide Coating
•Modified Bottom Chamfer
•Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC | Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.85000
Package Height
.85000
Package Weight
0.182
