2-56 H2-2FL S/O MOD-BOT

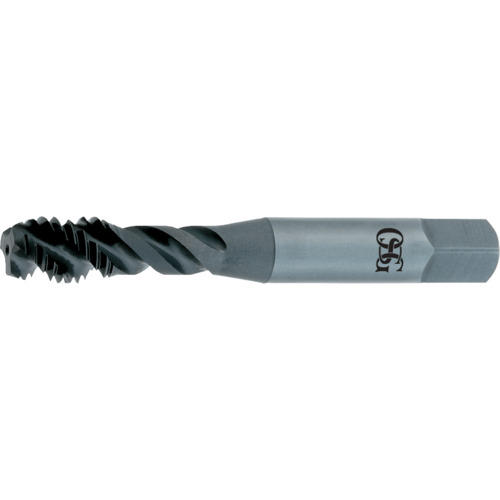

Spiral Flute Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS ; Black Oxide ; H2 ; Series 290
| Thread Diameter Size (TDZ) | #2 | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 56 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 1-3/4″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 7/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.476″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 290 |
| Thread Tolerance Class (TCTR) | H2 |
Product Features
| Remarks | •Spiral Fluted With Modified Bottom •For tapping hardened steel •Best Application: 4140, 4340, H13, D2 and 1055 up to 35HRC | Country of Origin | Brazil |
Shipping Info
Package Length
2.50000
Package Width
.30000
Package Height
.30000
Package Weight
0.025
