3/4-16 4FL 2B SP FL

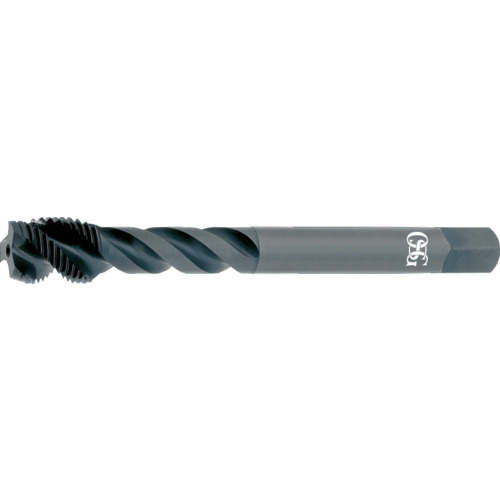

Spiral Flute Tap; 3/4″ - 16 ; 110 mm OAL ; 4 FL ; HSS ; Black Oxide ; 2B ; Series 220
| Thread Diameter Size (TDZ) | 3/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 16 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 110 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 2″ | Flute Type | Spiral |
| Usable Length (LU) | 2.433″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 220 |
Product Features
| Remarks | •HY-PRO DIN Spiral Flute Taps •Steam Oxide •DIN overall lengths, Modified Bottoming (2.5P–3P) | Country of Origin | Brazil |
Shipping Info
Package Length
4.50000
Package Width
1.00000
Package Height
.90000
Package Weight
0.29
