10-32 3FL 2B SP FL

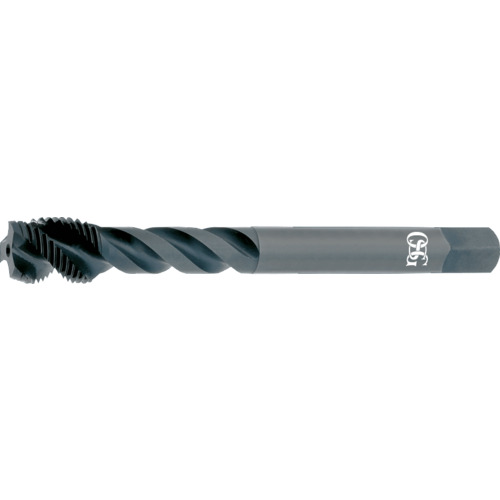

Spiral Flute Tap; #10 - 32 ; 70 mm OAL ; 3 FL ; HSS ; Black Oxide ; 2B ; Series 220
| Thread Diameter Size (TDZ) | #10 | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 70 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 7/8″ | Flute Type | Spiral |
| Usable Length (LU) | 0.976″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 220 |
Product Features
| Remarks | •HY-PRO DIN Spiral Flute Taps •Steam Oxide •DIN overall lengths, Modified Bottoming (2.5P–3P) | Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
