2091M SHEARTAP M14XD7

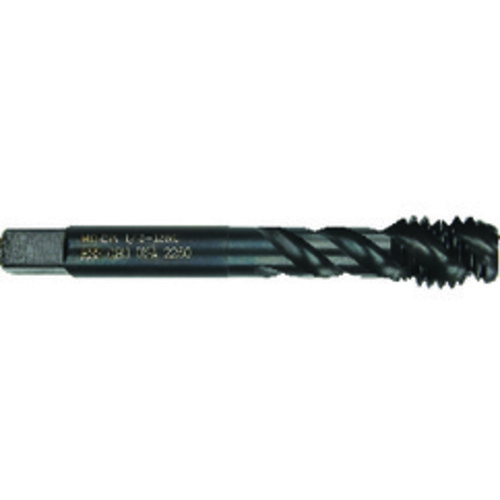

‎Spiral Flute Tap; M14 × 2 mm ; 3-19/32″ OAL ; 3 FL ; HSS ; Steam Oxide over Nitride ; D7 ; Series 2091

Item # 1029713

Brand: Morse Cutting Tools

MFG #: 35271

Legacy Part #: MT3535271

UPC #: 01029713 | 68612535271 | 686125352714

Trade Name: SHEAR TAP

Quantity Available

Thread Diameter Size (TDZ)

M14

Cutting Edge Material

HSS

Thread Pitch (TP)

2 mm

Thread Tolerance Class (TCTR)

Thread Standard

Special Feature

ShearTap

Overall Length (OAL)

‎3-19/32″

Tool Type

High Performance Tap

Thread Cutting Part Length (THL)

0.69″

Chamfer

Semi-Bottoming

Usable Length (LU)

1.673″

Coating

Steam Oxide over Nitride

Connection Diameter Machine Side (DCONMS)

0.429″

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Measurement Type

Metric

Flute Helix Angle (FHA)

48 Degrees

ToolTypeName

Spiral Flute Taps

Applicable Material

| Stainless Steel |

Series/List #

2091

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

USA

Shipping Info

Package Length

4.30000

Package Width

.80000

Package Height

.80000

Package Weight

0.15
