GT705005 M8X1.25 6H SPPT 371 HSS-E

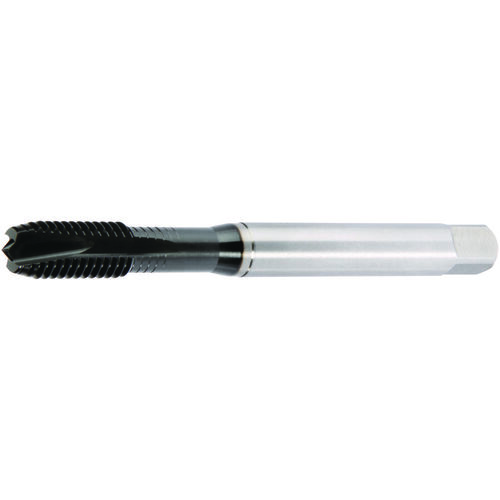

Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 2 FL ; HSSCo-PM ; 6H
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.25 mm | Standard | DIN371 |
| Threads per Inch (TPI) | 20.32 | Chamfer | 3P-5P |
| Thread Standard | Metric | Flute Type | Spiral |
| Overall Length (OAL) | 90 mm | End Shape | Spiral Point |
| Thread Cutting Part Length (THL) | 20 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Square Size | 6.2 mm |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0649
