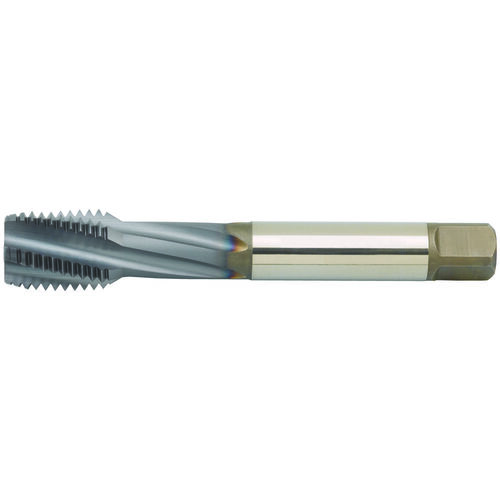

GT505005 M42X4.5 6HX 15RHSF SBOT
| Thread Diameter Size (TDZ) | M42 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 4.5 mm | Standard | DIN376 |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 200 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 45 mm | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Square Size | 24 mm |
| Cutting Edge Material | HSSCoPM | Measurement Type | Metric |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
2.4453
